Key Features

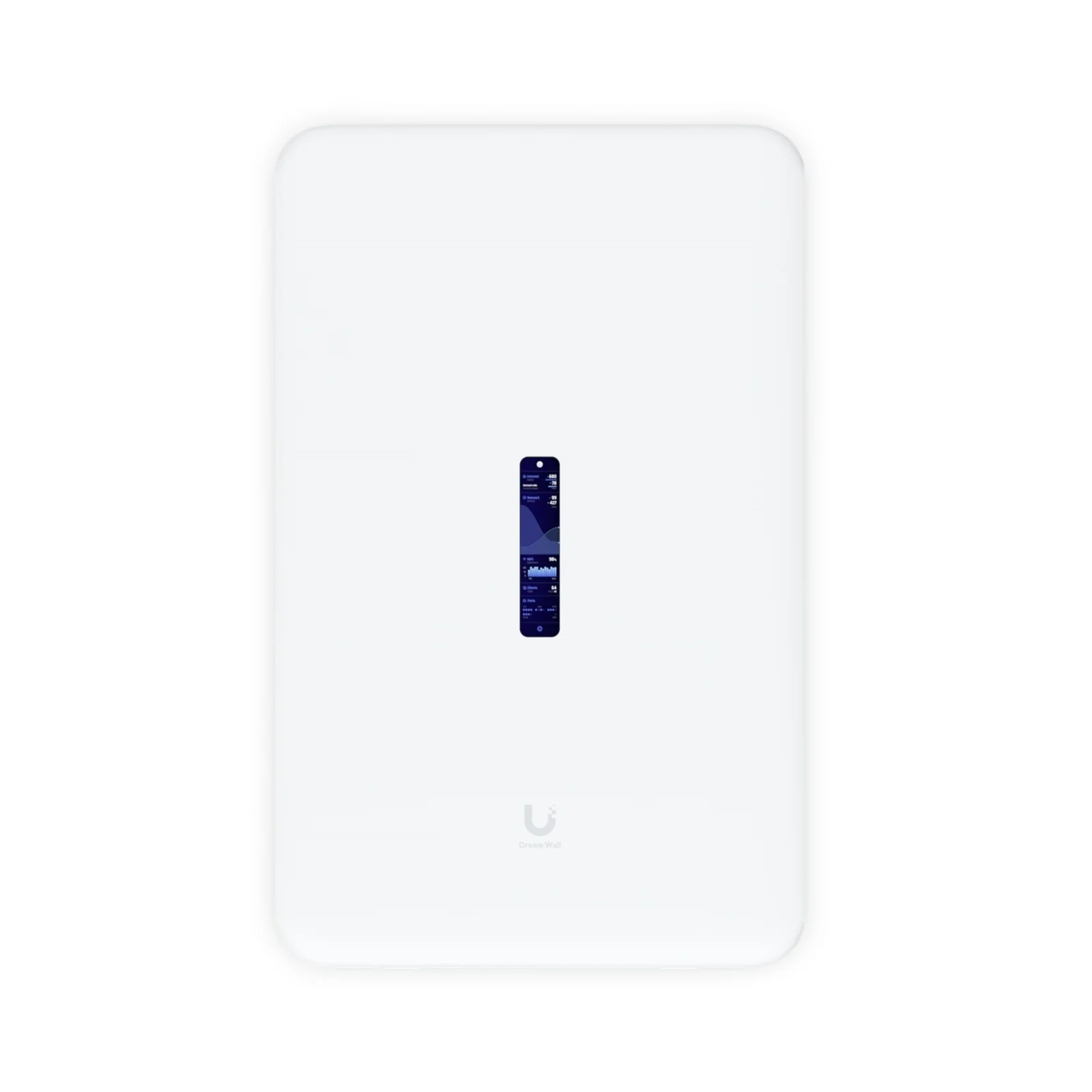

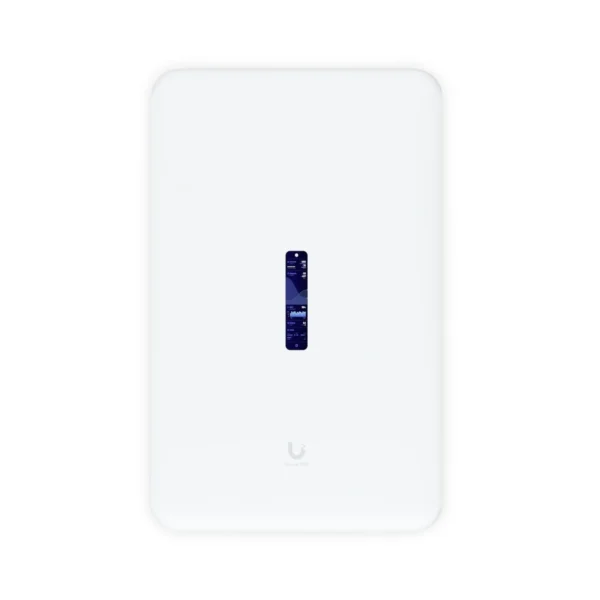

Wall-mountable UniFi OS Console
Dual-band WiFi radio with a 2.7 Gbps aggregate throughput rate (2.4 GHz: 300 Mbps / 5 GHz: 2.4 Gbps)
Dual WAN ports (10G SFP+ and 2.5GbE RJ45)
(1) 10G SFP+ LAN port
Dedicated Bluetooth management radio for streamlined configuration
1.3 LCM color touchscreen

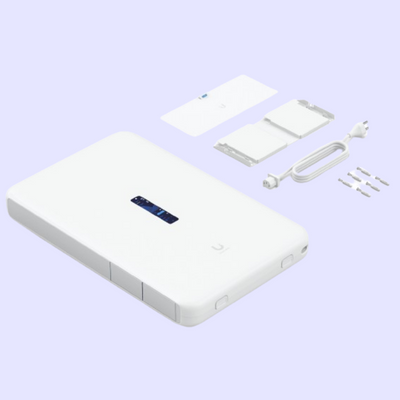

Includes a wall mount, screw kits, and a power cord
128 GB integrated storage for full UniFi OS Application experience
Micro SD memory card expansion slot (card needs min 128 GB of storage)
Supports redundant power resources

(5) GbE RJ45 LAN ports
(12) GbE RJ45 ports, including (4) PoE, (4) PoE+, and (4) PoE++ LAN ports

Specifications

Mechanical

Weight and Dimensions
549 x 342 x 62 mm (21.6 x 13.5 x 2.4 )
10 kg (22 lb)

Enclosure Materials
Polycarbonate
Galvanized Steel
Aluminium Alloy

Mount Material
Stainless steel

Hardware

Processor Specs
Quad-Core ARM Cortex -A57 at 1.7 GHz

System Memory
4GB
DDR4

On-board Storage
16 GB eMMC Integrated
128 GB SSD

Expansion Slot
Micro SD memory card (optional)
Requires a memory card with at least 128GB of storage.

Management Interface
Ethernet
Bluetooth
WiFi

Networking interfaces
(1) WAN: 2.5 GbE RJ45 port(17) LAN: 1 GbE RJ45 ports

SFP+ Interfaces
(1) WAN: 10G SFP+(1) LAN: 10G SFP+

PoE interfaces
(4) PoE IEEE 802.3af (pair A 1, 2+; 3, 6-)(4) PoE+ IEEE 802.3at (pair A 1, 2+; 3, 6-)(4) PoE++ IEEE 802.3bt(pair A 1, 2+; 3, 6-) (pair B 4, 5+; 7, 😎

LCM display
(1) 1.3 touchscreen Start-up animation: start-up in progress Firmware update icon: firmware updating

Button
Factory-reset

Power Method
Universal AC input 100 to 240VAC, 7A Max, 50/60Hz

Power Supply
(2) Hot-Swappable AC/DC 550W PSU

Max Power Consumption
532W

Max PoE Wattage Per Port by PSE
PoE 802.3af: 15.4WPoE+ 802.3at: 30WPoE++ 802.3bt: 60W

Voltage Range
802.3af mode 44 to 57V

Voltage Range
802.3at/bt mode 50 to 57V

Mounting
Wall mount(included)

ESD/EMP Protection Air
8 kV contact 4 kV

Operating Temperature
-10 to 40° C (14 to 104° F)

Operating Humidity
5 – 95% non-condensing

Certifications
CE, FCC, IC
