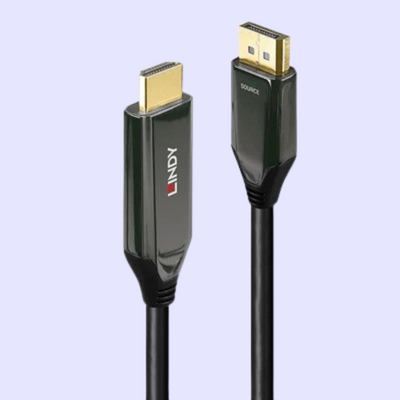

Lindy 40931 2m Active DisplayPort 1.4 to HDMI 8K60 Cable

Lindy’s Active DisplayPort to HDMI Cable range combine superior performance with stylish design to provide a high quality conversion of DisplayPort 4K@60Hz signals to output to a HDMI display or projector. This range of active cables come with an in-built chipset to not only provide a reliable connection, but also enhance compatibility with both dual mode and non-dual mode graphic cards and source devices, perfect for use with DP graphics cards, laptops and PC’s, while avoiding the need for additional adapters.

With support for resolutions up to 7680×4320@60Hz or 4096×2160@120Hz and with additional support for High Dynamic Range, 8K content can be viewed with crystal clear clarity, enhanced contrast and more lifelike colour. These cables are great for creating eye-catching retail displays, innovative working environments or immersive video playback in sports bars and home cinema installations, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video.

Support for AMD Eyefinity technology also brings the user a cost effective way of creating a non-standard aspect ratio or ultra-high resolution display made up from up to 3 or more monitors. This feature also allows the user to run multiple applications simultaneously on separate screens, improving productivity in the workplace or creating a widescreen gaming experience.

Please note
Audio output over HDMI is only supported when the graphics card of the notebook or desktop computer supports audio output over DisplayPort. In such instances a separate audio connection has to be set up.

Specifications

Connectors

Connector A
DisplayPort Male

Connector B
HDMI Type A Male

Chipset
VM7100

Housing Material
Zinc Alloy

Connector Plating
Gold Plating

Pin Construction
Copper Alloy

Pin Plating
Gold Plating

Dimensions (approx.) W x D x H
DisplayPort: 50 mm x 20 mm x 8 mm
HDMI: 60 mm x 20 mm x 8 mm

Cable Construction

Length
2m (6.56ft)

Standard
DisplayPort 1.4
HDMI 2.1

Colour
Black

Type
Round

Jacket Diameter
5.5mm (0.22in)

Jacket Material
PVC

Conductor Material
Tinned Copper

Conductor Gauge
32AWG

Shielding
Tinplate

Specs

Supported Bandwidth
48Gbps

Maximum Resolution
7680×4320@60Hz 4:4:4 10bit

Nominal Attenuation
100MHz-10GHz 24dB

Minimum Bend Radius
33mm (1.3in)

Operating Temperature
-20°C – 40°C (-4°F – 104°F)

Storage Temperature
-40°C – 80°C (-40°F – 176°F)

Miscellaneous

Packaging Type
Polybag

Warranty (Years)
2

Product Compliance
CE, UKCA, FCC, RoHS, REACH, UL & California Proposition 65
